EQUESTRIAN SPORTS

Timing systems are used in equestrian sport at all levels of competition. For many years, ALGE-TIMING has been one of the world's leading manufacturers of timing systems certified by the FEI (International Equestrian Federation).

With the new, wireless WTN (Wireless Timing Network) system ALGE-TIMING has once again taken a step forward, as wireless timing systems can be deployed faster and are very convenient and reliable to use.

Translated with DeepL.com (free version)

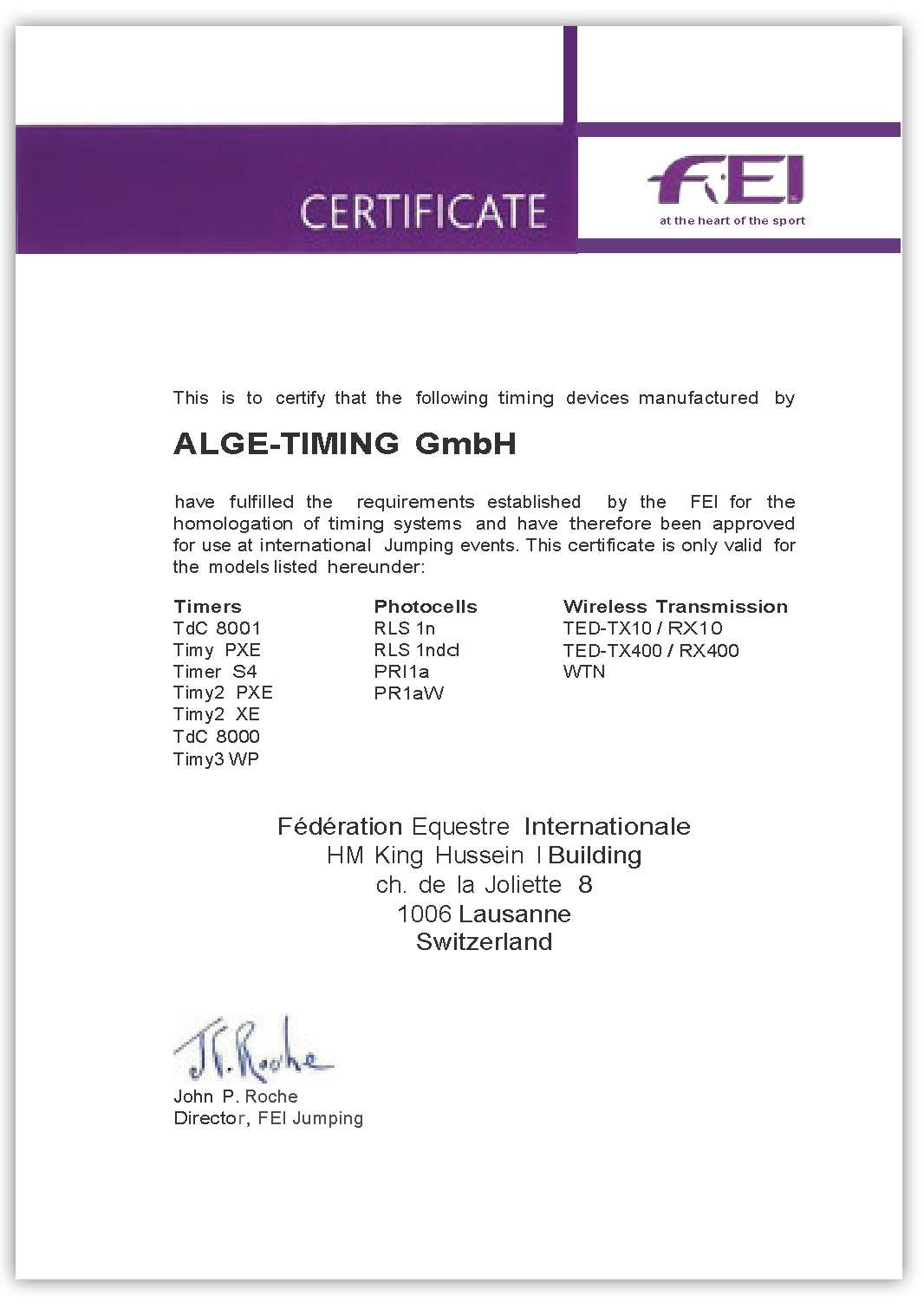

FEI (International Equestrian Federation) Certificate Only certified timing systems can be used in international competitions organized according to the rules of the International Equestrian Federation (FEI). For this reason, all devices offered by ALGE-TIMING for equestrian sports are FEI certified.

JUMPING

Timing system on timer TdC8001

Various timing systems can be used for show jumping competitions. Particularly popular is the timing system with the proven TdC8001 timer and WTN radio system.

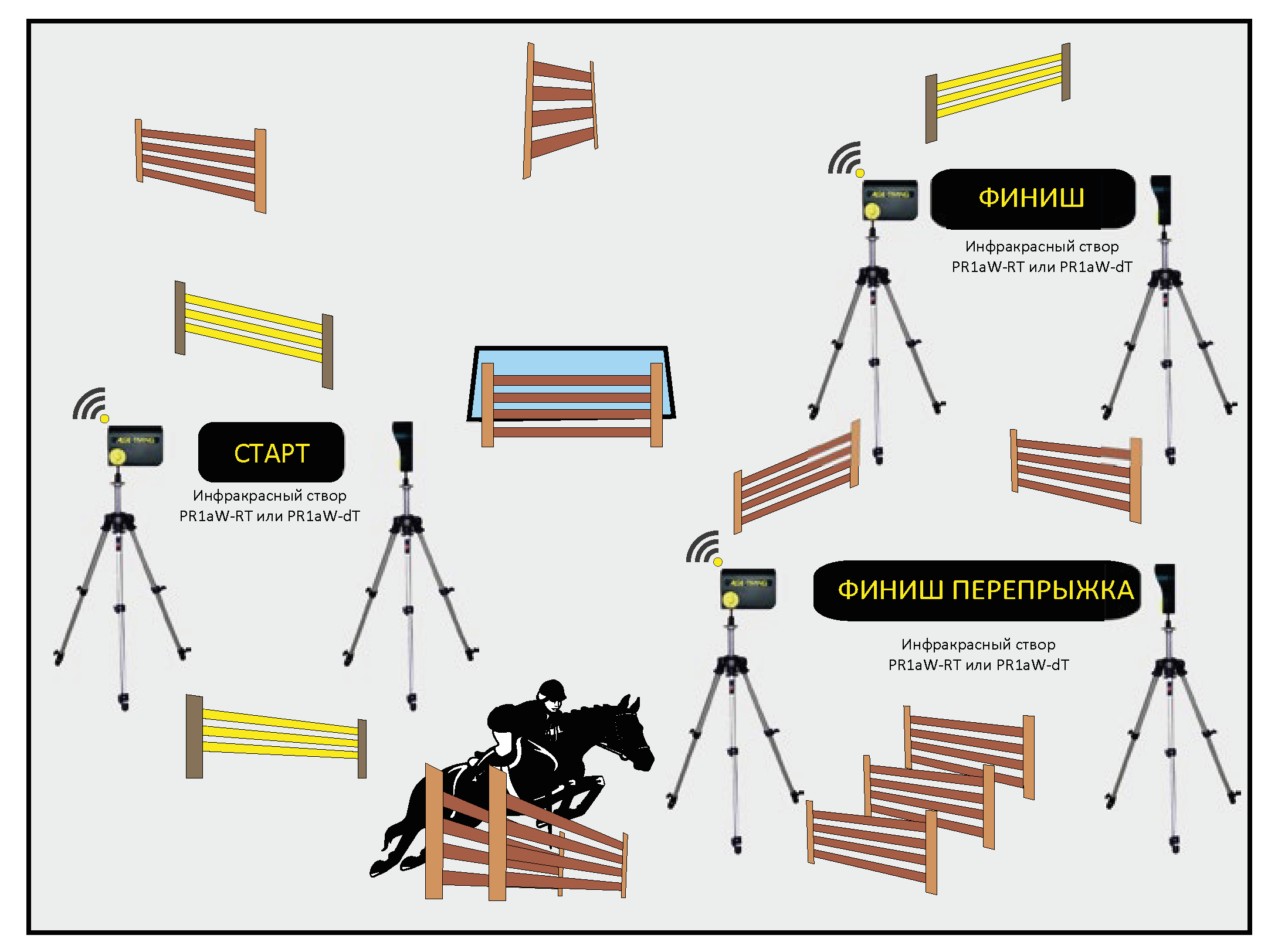

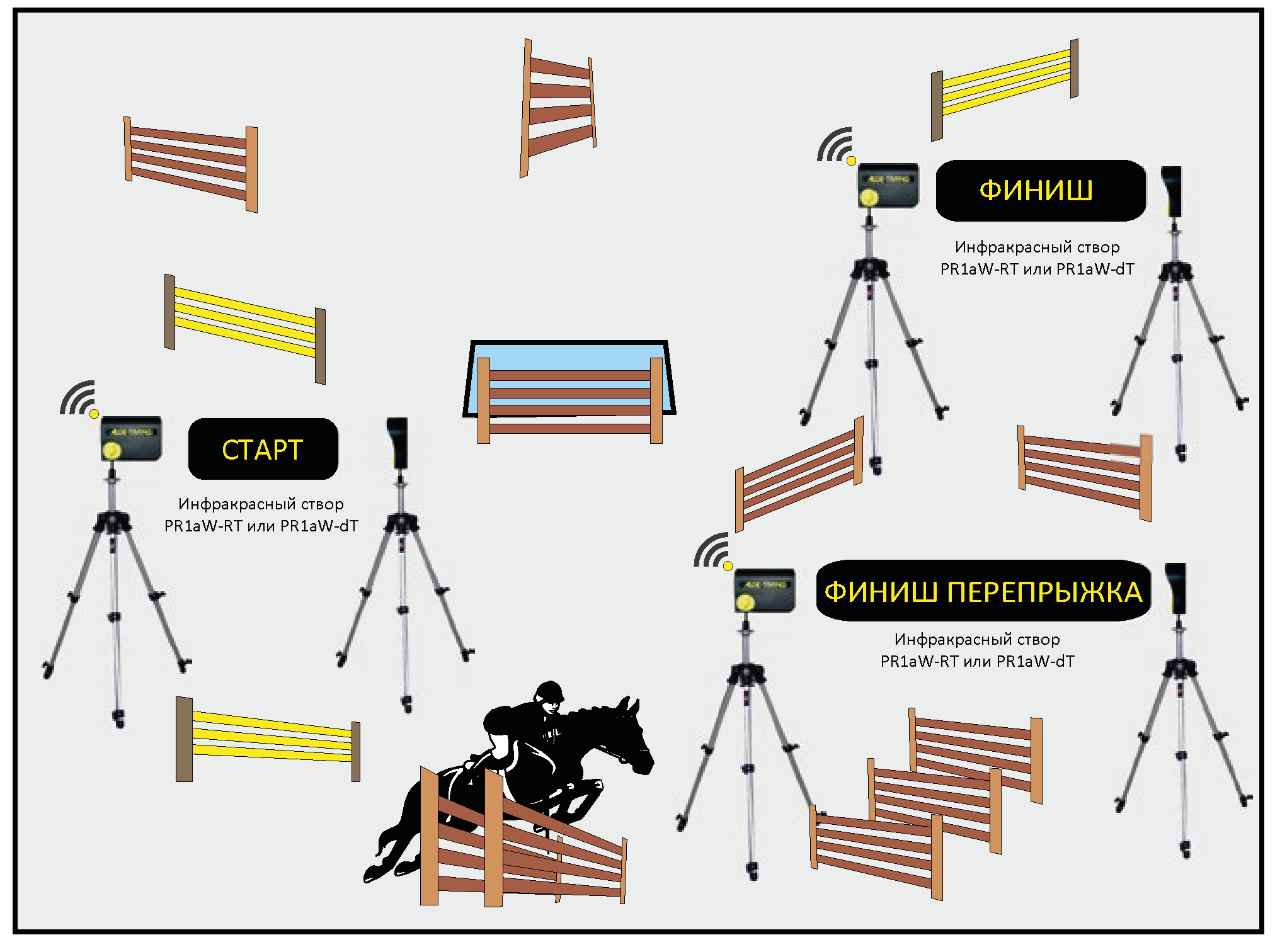

Timing system on Timy3

timer The Wireless Timing Network WTN radio system built into the Timy3 WP timer and PR1aW infrared shutter allows you to quickly and easily install a timing system. The scoreboards are controlled via WTN radio systems, and the timing system is controlled using a PC with installed software that allows you to prepare and print starting and final protocols.

COMPETITION. System components

TimerTdC8001
Professional timer, with special programs for show jumping, battery-powered, with a built-in protocol printer on which you can print the results. Penalty points are entered manually, and time penalties are calculated automatically.

Timy3 WP
A compact, highly accurate timing device that is ideal for use with a PC and results processing software connected via a USB interface. Timy also has a built-in protocol printer and a WTN wireless module.

Wireless network WTN-WS WTN-WS
universal wireless network for timing, data transfer to a PC or scoreboard.

Infrared target PR1a-RT
Target with a combined receiver-transmitter. Main unit and reflector, max. Use distance up to 25 m, with integrated WTN wireless module.

Infrared target PR1a-dT
Range with separate transmitter and receiver for use over long distances, up to 100 m, with built-in WTN wireless module.

Wireless button WTN-PB
The referee can use this button to control the time-out. The built-in WTN allows the judge to move freely.

Button 023-02
An alternative to the wireless button, the 023-02 button with cable, to trigger timeouts.

Speaker TdC8001
Gives an audible start or countdown signal through the built-in loudspeaker.

Radio receiver WTN-DB
Radio receiver for scoreboards such as DLINE or GAZ5 with built-in WTN.

Scoreboard GAZ5 GAZ5
Electromagnetic seven-segment scoreboard, which can display time, points, identification numbers and places, the scoreboard is available with digit heights of 15 or 25 cm.

Scoreboard D-LINE
Seven-segment LED display showing time, points, numbers and place of athletes, with digit heights of 15, 25, 45, 60 or 100 cm

Scoreboard D-RTNM
Matrix screen with red LEDs of various sizes for displaying the rider's name, horse's name, advertising, graphics, animation or use as a ticker.

Matrix screen and video board
Matrix screens and video boards of all sizes on request.

RUN

The TdC8001 timer is perfect for endurance events. We also recommend using the ASC3 start clock to ensure proper start timing. If the start and finish are close to each other, the starter can connect a headset to the timer.

For short starting intervals, an additional headset should be used approximately 200m before the finish line to announce the names of the finishing horses.

HORSE RACING

Races can take place on one or more tracks. If only one OPTIc3 photo finish camera is used, it must be set to the main finish line. It is possible to use one photo finish camera per finish line. In addition, the paths can be equipped with light bars, radio transmitters, screens and a video broadcast system.

Horse racing. Accessories.

Infrared target PR1a-d
target with transmitter and receiver for use over long distances (up to 100 m)

Cover for the gate PB4
to protect the site from dirt, dust and weather influences

Heated door frame PB4H
The built-in heater protects the photocell from fogging and icing. Integrated power supply

Radio system TED400
for wireless transmission of the start signal to the timer. This allows you to start from any point on the route (distance up to 4.5 km, line of sight)

Horse racing. Accessories.

Infrared target PR1a-d
target with transmitter and receiver for use over long distances (up to 100 m)

Cover for PB4 gate
to protect the site from dirt, dust and weather influences

Heated door frame PB4H
The built-in heater protects the photocell from fogging and icing. Integrated power supply

TED400 radio system
for wireless transmission of the start signal to the timer. This allows you to start from any point on the route (distance up to 4.5 km, line of sight)

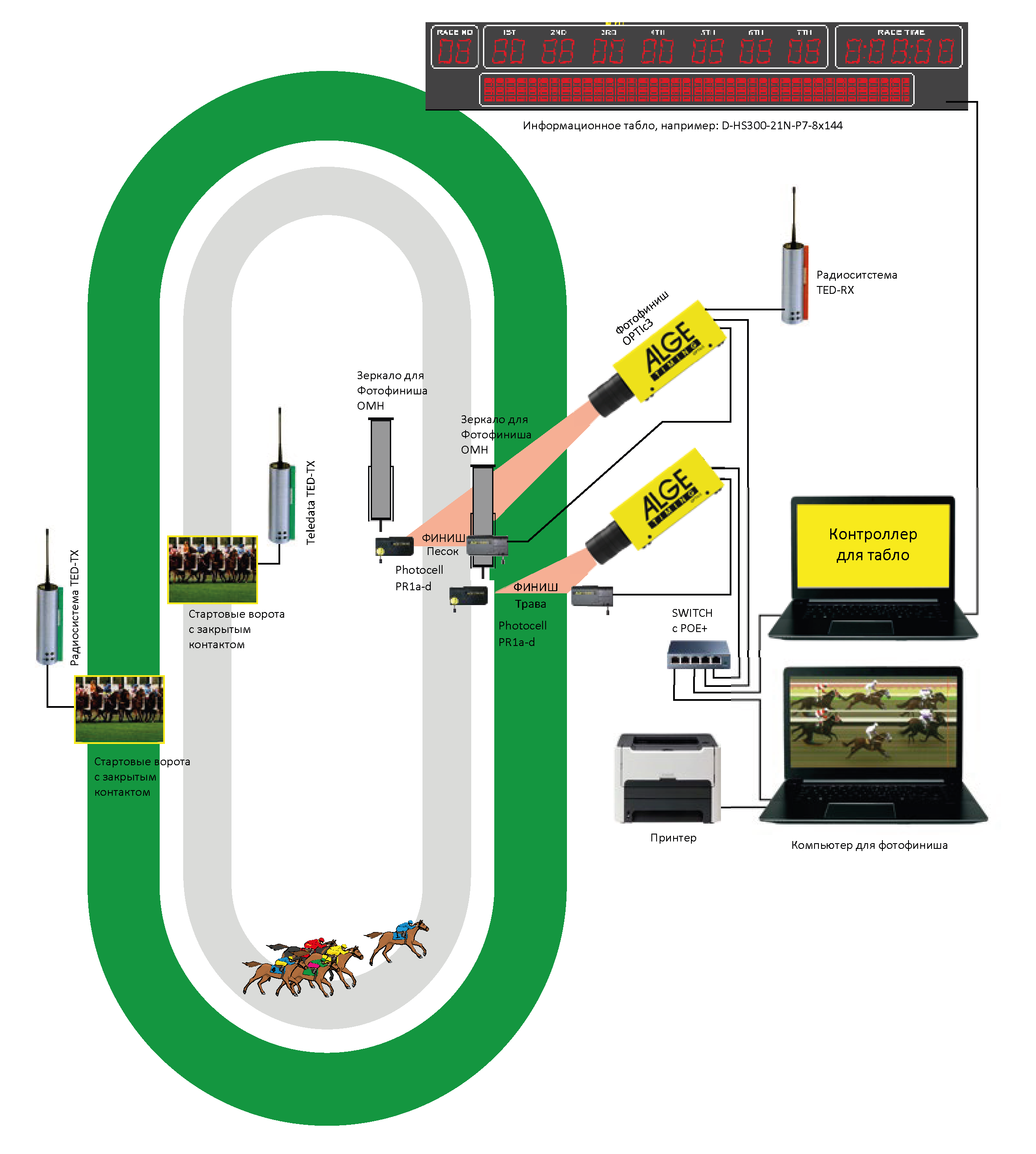

In horse racing, each race has its own specific features, and they are shown in the example (see below, in the illustration with two tracks). The system can be customized to suit each type of race.
